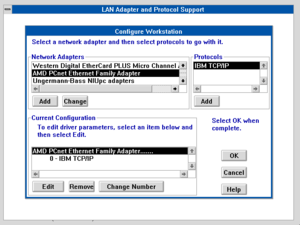

OS/2 LAN Adapter and Protocol Support
Based on the Network Driver Interface Specification (NDIS)
Files
\IBMCOM
| Name | Comments | |
|---|---|---|
| BRZ.MSG | BRZH.MSG | Messages for IBM Token-Ring Network 16/4 Adapter II |
| DDNSICON.EXE | ||
| ETH.MSG | ETHH.MSG | Messages for IBM Ethernet Adapter |
| IBMLVL.TXT | ||
| IBMLXCFG.HLP | ||
| LA1.MSG | LA1H.MSG | Messages for IBM Token-Ring PCI Family Adapter |
| LANMSGDD.OS2 | ||
| LANMSGEX.EXE | ||
| LANTRAN.LOG | LAN transport log | |
| LAPSDISK.EXE | ||
| LAPSICON.EXE | ||
| LAPSOBJ.EXE | ||
| LAPSRSP.EXE | ||
| LT0.MSG | LT0H.MSG | Messages for IBM OS/2 LANDD |
| LT2.MSG | LT2H.MSG | Messages for IBM Token-Ring Shared RAM Family |
| LT4.MSG | LT4H.MSG | Messages for IBM Token-Ring Network 16/4 Busmaster Server Adapter/A |
| LT8.MSG | LT8H.MSG | |
| LT9.MSG | LT9H.MSG | Messages for IBM 16/4 Busmaster EISA Adapter |
| LTC.MSG | LTCH.MSG | Messages for IBM Streamer Family adapters |
| LTE.MSG | LTEH.MSG | Messages for IBM FDDI adapter |
| LTG.MSG | LTGH.MSG | Messages for Token-Ring Credit Card |
| LTSVCFG.COM | LAN transport service configuration | |
| MND.MSG | Messages for Madge Smart 16/4 Ringnode | |
| MPTS.EXE | ||
| MPTS.ICO | ||
| MPTS.RSP | ||
| MPTSCFG.INF | ||
| MPTSHELP.HLP | ||
| NCD.MSG | ||
| NND.MSG | ||
| NWFIXUP.EXE | ||
| PKUNZIP2.EXE | PKUNZIP 1.11 | |
| PMAC.MSG | Messages for Parallel Port MAC | |
| PRO.MSG | PROH.MSG | |
| PROTMAN.OS2 | Protocol manager | |
| PROTOCOL.INI | defines the protocol drivers and adapter drivers with binding information | |
| README.MPT | ||
| RFCADDR.EXE | ||
| RTR16NDS.MSG | Messages for Racore TR | |
| SETENVAR.EXE | ||
| SND.MSG | Messages for Madge Smart 16/4 | |
| SYSLEVEL.TRP | ||
| THINLAPS.EXE | ||
| XI0.MSG | XI0H.MSG | Messages for LAPS |
| XIHELP.HLP | ||
| XND.MSG | Messages for IBM EtherJet |
\IBMCOM\DLL
| Name | Comments |
|---|---|
| ACSLAN.DLL | |
| ACSNETB.DLL | Ring 3 NetBIOS NB30 DLL API |
| IBMLXCFG.DLL | |
| IBMLXRES.DLL | |
| LANMSGDL.DLL | |
| LAPSCID.DLL | |
| LAPSMCID.DLL | |
| LAPSMPTN.DLL | |
| LAPSMRES.DLL | |
| LAPSPM.DLL | |
| LAPSRES.DLL | |
| NCD.DLL |
\IBMCOM\MACS
| MAC Driver | NIF | MSG | Support Files | |
|---|---|---|---|---|
| ARLTNDIS.OS2 | ARLTNDIS.NIF | Artem | ||
| B44A.OS2 | B44A.NIF | Broadcom | ||
| B57.OS2 | B57.NIF | Broadcom | ||
| COMETA.OS2 | COMETA.NIF | |||
| DC21X4.OS2 | DC21X4.NIF | DEC | ||
| DP815A.OS2 | DP815A.NIF | |||
| DP820A.OS2 | DP820A.NIF | |||
| E1000.OS2 | E1000.NIF | E1000.MSG | Intel PRO/1000 | |
| E1000E.OS2 | E1000E.NIF | E1000E.SYM, E1000E.TXT | ||
| E1000_C.OS2 | E1000_C.NIF | |||
| E100B.OS2 | E100BEO2.NIF | E100B.MSG | Intel PRO/100 | |
| EL515.OS2 | EL515IO2.NIF | 3Com Fast EtherLink ISA Bus Master | ||
| EL59X.OS2 | EL59XIO2.NIF | 3Com Fast EtherLink & EtherLink III | ||
| EL90X.OS2 | EL90XIO2.NIF | 3Com Fast EtherLink/EtherLink XL | ||
| ELNK16.OS2 | ELNK16.NIF | 3Com EtherLink 16 (3c507) | ||
| ELNK3.OS2 | EL3IBMO2.NIF | 3Com Etherlink 10 ISA Family | ||
| ELNKII.OS2 | ELNKII.NIF | 3Com EtherLink II (3c503) | ||
| ELNKMC.OS2 | ELNKMC.NIF | 3Com EtherLink/MC (3c523) | ||
| ELPC3.OS2 | ELPC3OS2.NIF | 3Com EtherLink III PC Card | ||
| ELPC3X.OS2 | ELPCXOS2.NIF | 3Com EtherLink III LAN+Modem PC Card | ||
| EXP16.OS2 | EXP16.NIF | EXP16.TXT | Intel EtherExpress 16 | |
| GENM32W.OS2 | GENM32M.MSG | |||
| I2OLOSM.OS2 | I2OLOSM.NIF | IBM I2O LAN | ||
| IBM16TR.OS2 | IBM16OS2.NIF | BRZ.MSG BRZH.MSG |
IBM16TR.TXT | IBM Token Ring Network 16/4 Adapter II |
| IBMCNDIS.OS2 | ||||
| IBMCODI.OS2 | ||||
| IBMCOS2.NIF | ||||
| IBMEANDI.OS2 | IBMEANDI.NIF | IBMEANDI.TXT | IBM PCI Ethernet | |
| IBMEINDI.OS2 | IBMEINDI.NIF | XND.MSG | IBM EtherJet ISA Ethernet Adapter | |
| IBMEITR.OS2 | IBMEIOS2.NIF | LT9.MSG LT9H.MSG |
IBM 16/4 Busmaster EISA Adapter | |
| IBMENI.OS2 | IBMENI.NIF | IBMENI.TXT | IBM LAN Adapter for Ethernet | |
| IBMENII.OS2 | IBMENII.NIF | IBMENII.TXT | IBM LAN Adapter/A für Ethernet | |
| IBMESAN2.OS2 | IBMESAN2.NIF | IBM EISA Ethernet Adapter | ||
| IBMEXNDI.OS2 | IBMEXNDI.NIF | XND.MSG | IBM EtherJet PC Card | |
| IBMFDX.OS2 | IBMFDX.NIF | LTE.MSG LTEH.MSG |
IBMFDX.TXT | IBM FDDI FI Adapter |
| IBMFE.OS2 | IBMFEEO2.NIF | IBM 10/100 EtherJet PCI Adapter | ||
| IBMGC.OS2 | IBMGC.NIF | |||
| IBMGE.OS2 | IBMGE.NIF | |||
| IBMGU.OS2 | IBMGU.NIF | IBM Gigabit Ethernet Adapter | ||
| IBMMPC.OS2 | IBMMPC.NIF | LTC.MSG LTCH.MSG |
IBMMPC.DOC | IBM Auto LANStreamer PCI |
| IBMTRDB.NIF | LTB.MSG LTBH.MSG |
IBM LANStreamer 16/32 MCA Adapter | ||
| IBMPRISM.OS2 | IBMPRISM.NIF | IBMPRISM.MSG | WIFISTAT.EXE | |
| IBMTOK.OS2 | IBMTOK.NIF | LT2.MSG LT2H.MSG |
IBM T-R Shared RAM Family | |
| TLNKIII.NIF | ||||
| IBMTOKC.NIF | IBM compatible Token-Ring | |||
| KNGSTN1.NIF | Kingston TokenRx 16/4 | |||
| TCTTOK.NIF | ||||
| IBMTOKCS.OS2 | IBMTOKCS.NIF | LTG.MSG LTGH.MSG |
IBM Turbo 16/4 Token-Ring PC Card | |
| IBMTRBM.OS2 | IBMTRBM.NIF | LT4.MSG LT4H.MSG |
MONT400.BIN, WRTRAM.BIN | IBM T-R Busmaster Server Adapter |
| IBMTRP.OS2 | IBMTRP.NIF | LA1.MSG LA1H.MSG |
IBMTRP.DOC | IBM PCI and CardBus Token-Ring Adapter |
| IBMWIFI2.OS2 | IBMWIFI2.NIF | |||
| INTEL16.OS2 | INTEL16.NIF | INTEL.TXT | Intel TokenExpress Network 16/4 Adapter | |
| INTEL32.OS2 | INTEL32.NIF | Intel TokenExpress Network Server Adapter | ||
| IRDANDIS.OS2 | IRDANDIS.NIF | |||
| KTC2000.OS2 | KTC2000.NIF | Kingston EtheRx LC ISA | ||
| KTC40.OS2 | KTC40.NIF | Kingston EtheRx PCI | ||
| MACETH.OS2 | MACETH.NIF | ETH.MSG ETHH.MSG |
IBM PS/2 Adapter for Ethernet | |
| MACETH2.OS2 | ||||
| MDGND.OS2 | MDGND.NIF | Madge Token-Ring Adapter | ||
| NULLNDIS.OS2 | NONETADP.NIF | NND.MSG | ||
| NULLNDIS.NIF | ||||
| NVETH.OS2 | NVETH.NIF | NVETH.LIC, NVETH.SYM, NVETH.TXT | ||
| OLITOK16.OS2 | OLITOK.NIF | Olicom Token-Ring Network 16/4 | ||
| OLITOKCE.NIF | Olicom Token-Ring PCMCIA | |||
| OLITOK32.OS2 | OLITOK32.NIF | Olicom Token-Ring Network Server Adapter | ||
| PCIND.OS2 | ||||
| PCISETUP.OS2 | ||||
| PCMNICCS.OS2 | PCMNICCS.NIF | IBM Ethernet Adapter (PCMCIA) | ||
| PCNTND.OS2 | PCNTND.NIF | AMD PCNet | ||
| PMAC.OS2 | PMAC.NIF | PMAC.EXE, PMAC.TXT | SSW Parallel | |
| PNPND.OS2 | ||||
| R8110.OS2 | R8110.NIF | READMAC.TXT README README.TXT | ||
| RTFND.OS2 | RTL8139.NIF | RTL8139.TXT | ||
| RTL09.OS2 | RTL8009.NIF | |||
| RTL8019.NIF | ||||
| RTL8029.NIF | ||||
| RTL8129.NIF | ||||
| RTR16NDS.OS2 | RTR16NDS.NIF | RTR16NDS.TXT | Racore 16/4 Token-Ring Adapter | |
| RTSND.OS2 | RTSND.SYM, RTSNDDMN.EXE | |||
| SIS90A.OS2 | SIS90A.NIF | |||
| SK98ND.OS2 | SK98ND.NIF | |||
| SMARTND.OS2 | SMARTND.NIF | Madge Smart Ringnodes | ||
| SMC8000.OS2 | ETHOS2AT.NIF | SMC8000.TXT | SMC Ethernet ISA Adapter | |
| ETHOS2MC.NIF | SMC Ethernet MCA Adapter | |||
| SMC8100.OS2 | TOKOS2AT.NIF | SMC8100.TXT | ||
| TOKOS2MC.NIF | ||||
| SMC8232.OS2 | SMCOS2E.NIF | SMC8232.TXT | SMC Ethernet EISA Adapter | |
| SMC8332.OS2 | SMCOS2ET.NIF | SMC8332.TXT | SMC TokenCard Elite Master32 | |
| TC902X.OS2 | TC902X.NIF | |||
| TL3C3X9.OS2 | TL3C3X9.NIF | 3Com 3C3X9 PCI Token-Ring Adapter | ||
| TLPC3.OS2 | TLPC3.NIF | 3Com TokenLink III PC Card | ||
| USBETHR.OS2 | USBETHR.NIF | |||
| VFET1A.OS2 | VFET1A.NIF | |||
| VFET2A.OS2 | VFET2A.NIF | |||
| VFET3A.OS2 | VFET3A.NIF | |||
| VGEND2.OS2 | VGEND2.NIF | HP 100VG |
\IBMCOM\PROTOCOL
| Protocol Driver | NIF | |
|---|---|---|
| KDBNET.SYS | KDBNET.NIF | IBM Kernel Debugger |
| LANDD.OS2 | LANDD.NIF | IBM IEEE 802.2 protocol stack driver |
| LANDLL.EXE | Initialises IEEE 802.2 protocol stack | |
| LANDLLDD.OS2 | IEEE802.2 programming interface | |
| LANPDD.OS2 | PDD for IEEE802.2 protocol | |
| LANVDD.OS2 | VDD for IEEE802.2 protocol | |
| LANVMEM.SYS | ||
| NBTCP.EXE | ||
| NETBEUI.OS2 | NETBEUI.NIF | IBM OS/2 NETBIOS |
| NETBIND.EXE | Binder for NDIS protocols to NDIS MAC drivers | |
| NETBIOS.OS2 | NETBEUI.NIF | NetBIOS NB30 DD API |
| IPXNB.NIF | NetWare NetBIOS Emulation over IPX | |
| ODI2NDI.OS2 | ODI2NDI.NIF | IBM support for Netware Requester (ODI layer over NDIS MAC driver) |
| TCPBEUI.OS2 | TCPBEUI.NIF | IBM OS/2 NETBIOS over TCP/IP |
| TCPIP.NIF | IBM TCP/IP |
